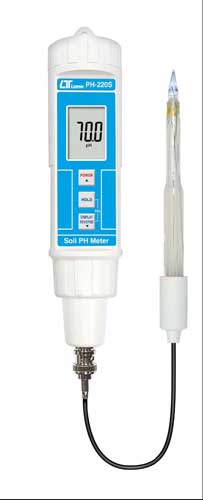

LUTRON PH-220S SOIL METER

LUTRON PH-220S SOIL METER

Pen type, separate pH soil electrode
SOIL PH METER
FEATURES
* Complete set with pen pH meter, soil pH electrode,
pH 4.0 /pH 7.0 standard buffer solution.
* Spear Tip pH electrode ( included ), ideal for
penetration pH measurement into soil, meats, cheese
and other type of measurements requiring sample
penetration. The electrode features a very durable
glass measuring spear packaged in a rugged virtually
unbreakable epoxy body.
* Separate soil pH electrode, easy for general purpose
usage and remote measurement.
* Auto calibration for pH 4, pH 7 or pH 10.
* Build in reverse display button.
* Data hold.
* Auto power off.
* Compact size, light weight.
* Optional carrying case.
* Water resistance on the front panel.
* Application : Agriculture, Gardening, Food
industrial, Education, School, Colleges, Laboratory,
Industrial and Quality control.

SPECIFICATIONS OF METER SPECIFICATIONS OF SOIL PH ELECTRODE, PE-06HD

Display LCD, size : 20 mm x 28 mm. pH Measuring 1 to 13 pH ( typical 0 to 14 pH ).

* User can reverse the display direction Range

by push button. pH Operation 5 to 60 ℃ ( 41 to 140 ℉ ).

Measurement 0 to 14 pH x 0.01 pH Temperature

Range pH Electrode Combination type.

Resolution 0.01 pH Structure

Accuracy ± 0.07 pH(pH5 to pH 9) Reference Ag/AgCl, Double Junction.

± 0.1 pH(pH4 to pH4.9, pH9.1 to pH10) of pH

± 0.2 pH(pH1 to pH3.9, pH10.1 to pH13) Electrode

* 23± 5℃ Zero Potential 7± 1 pH.

* After calibration. for pH Value

Input 10^12 ohms. Repeatability 0.05 pH.

Impedance Response time ≧ 2 minutes.

Temperature Not necessary to make adjustment. Body Material Epoxy.

Compensation Connector BNC.

Sampling Approx. 0.8 second. Mechanical With protection bottle ( soaker

Time Protection bottle ) on the electrode head.

Hold Function To freeze the display reading value. Weight 68 g ( including cable & socket ).

Calibration Auto calibration, Dimensions Body length - 160 mm.

method pH 7, pH 4 ( or pH 10 ) Body Dia. - 12 mm.

pH electrode BNC connector. Cable length - 1000 mm.

connector

* Appearance and specifications listed in this brochure are subject to change without notice.
