Oricom AIR40 Twin Cylinder Air Compressor with Inflation Kit HD

Name: Oricom AIR40 Twin Cylinder Air Compressor with Inflation Kit HD
SKU: AIR40
Price: 629.88 AUD
Availability: InStock

larger image

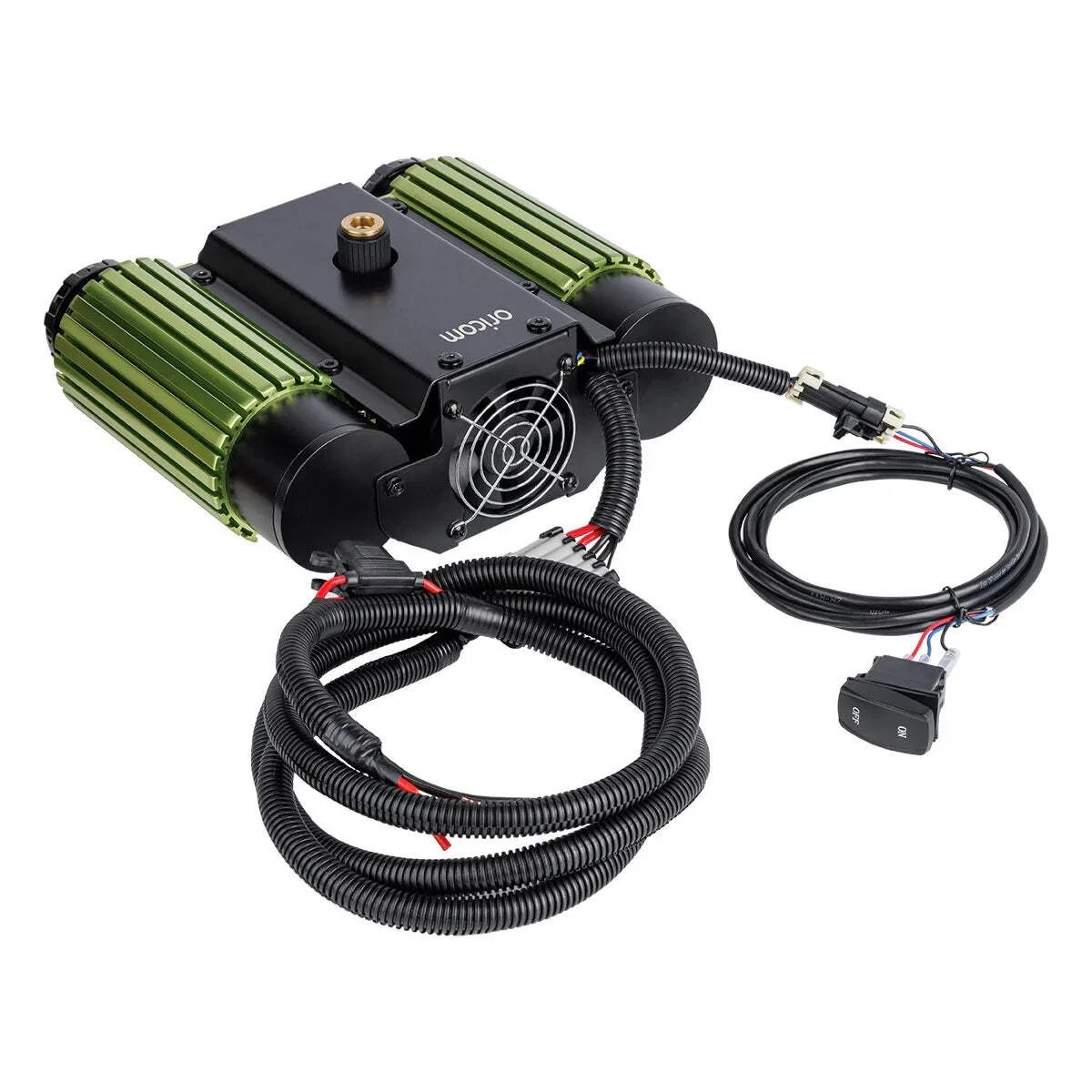

Oricom AIR40 Twin Cylinder Air Compressor with Inflation Kit

Professional twin-cylinder performance for rapid tyre inflation and heavy-duty 4WD applications

The Oricom AIR40 Twin Cylinder Air Compressor delivers 130 litres per minute airflow through dual 40mm bore cylinders, providing the sustained high-volume output needed for large 4WD tyres, multiple simultaneous inflations, and extended duty cycles. This heavy-duty 12V compressor handles demanding offroad scenarios where rapid reinflation after beach driving, sand tracks, or rock crawling is critical to maintaining travel schedules.

The twin-cylinder configuration distributes heat and workload across two pistons, enabling a 45-minute continuous duty cycle before requiring a 20-minute rest period—significantly longer than single-cylinder alternatives. Maximum pressure reaches 300 PSI with 150 PSI working pressure, suitable for both standard passenger tyres and larger light truck applications. The system includes automatic pressure cut-out between 120-150 PSI, thermal protection shutting down at 115°C, and a washable air filter reducing maintenance requirements.

A 6-metre hose with NPT quarter-inch quick-connect fitting provides reach across dual-axle setups, while direct battery connection via included wiring loom delivers the 62-amp current draw required for peak performance. Compatible with Oricom's tyre inflator and deflator kits for comprehensive pressure management, this compressor meets Australian safety standards and carries a three-year warranty.

Key Specifications

Twin cylinder design with 40mm bore diameter

Maximum airflow: 130 L/min at 0 PSI, 112 L/min at 29 PSI, 108 L/min at 40 PSI

Maximum pressure: 300 PSI

Maximum working pressure: 150 PSI

Voltage: 12-13.8V DC

Current draw: 62A under load, 35A no load

Duty cycle: 45 minutes continuous operation, 20 minutes rest

Automatic pressure cut-out: 120-150 PSI

Thermal protection: Auto shut-off at 115°C

Washable air filter included

6-metre hose with NPT ¼" quick-connect

Dimensions: 29 × 24.5 × 12 cm

Weight: 10.2 kg

Includes 40A inline fuse and wiring loom

3-year warranty

Meets AS/NZS 60335.1:2020+A1:2021 and EN/IEC 55014-1:2021 EMC standards

Features & Benefits

Twin-Cylinder Architecture — Dual 40mm cylinders distribute heat and mechanical stress, delivering sustained high airflow while extending operational lifespan compared to single-cylinder compressors under equivalent loads.

130 L/min Maximum Airflow — High-volume output inflates 35-inch 4WD tyres from 18 PSI to 36 PSI in under five minutes per tyre, critical when time-sensitive travel schedules follow beach or sand track deflation.

Extended 45-Minute Duty Cycle — Continuous operation for 45 minutes before mandatory rest enables complete reinflation of dual-axle trailer or caravan setups without mid-process cooling interruptions.

300 PSI Maximum Pressure Capability — Handles not only standard tyre inflation but also air locker activation, air suspension adjustments, and high-pressure accessories beyond typical compressor limits.

Automatic Pressure Cut-Out — Shuts off between 120-150 PSI, preventing over-inflation damage to tyres and allowing unattended operation when paired with inflation kits or manifold systems.

Thermal Protection at 115°C — Automatic overheat shutdown protects motor windings during extreme ambient temperatures or extended use, preventing permanent damage from thermal overload.

Washable Air Filter — Reusable filter element reduces ongoing maintenance costs and prevents airborne dust ingress in harsh Australian conditions, maintaining compressor efficiency over years of service.

6-Metre Hose Reach — Extended hose length eliminates vehicle repositioning when inflating dual-axle caravans, trailers, or reaching across wide 4WD track widths during simultaneous multi-tyre inflation.

Direct Battery Connection — Heavy-duty wiring loom with 40A inline fuse connects directly to battery terminals, bypassing cigarette lighter sockets inadequate for 62-amp peak current draw.

NPT Quick-Connect Fitting — Standard quarter-inch NPT connection provides compatibility with Oricom inflator/deflator kits, tyre gauges, and aftermarket inflation accessories.

Technical Specs

Model: AIR40

Configuration: Twin cylinder

Cylinder Bore Diameter: 40 mm

Operating Voltage: 12-13.8V DC

Current Draw (Under Load): 62A

Current Draw (No Load): 35A

Inline Fuse Rating: 40A (supplied)

Maximum Pressure: 300 PSI

Maximum Working Pressure: 150 PSI

Airflow Rate (0 PSI): 130 L/min

Airflow Rate (29 PSI): 112 L/min
