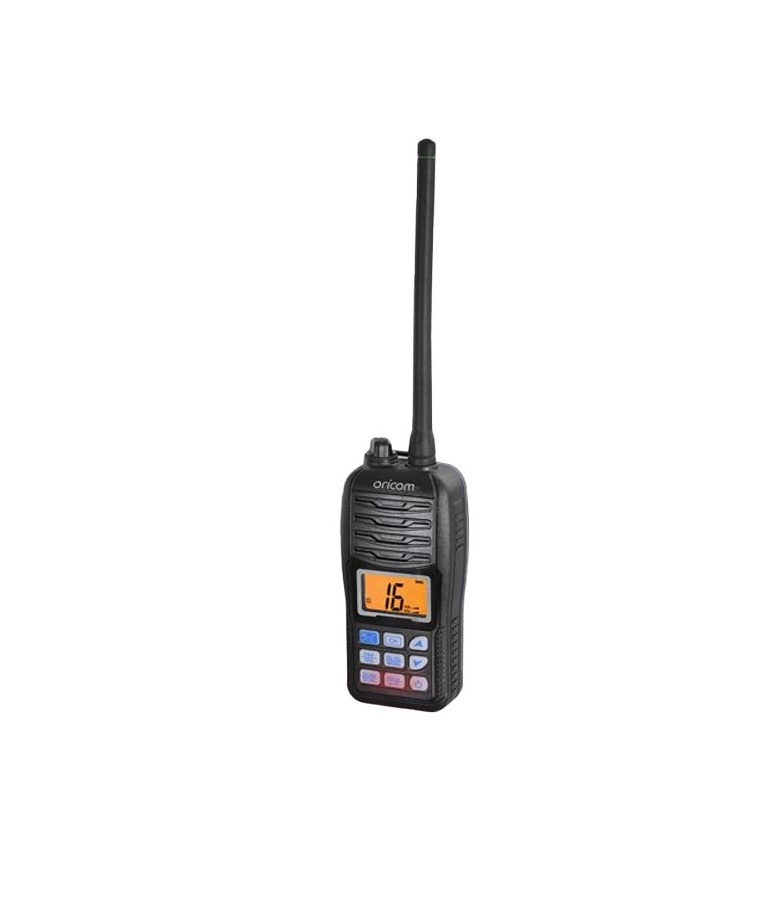

ORICOM MX500 VHF MARINE HANDHELD RADIO IP67 FLOATS FLASH

ORICOM MX500 VHF MARINE HANDHELD RADIO IP67 FLOATS FLASH

FREE SHIPPING AUSTRALIA WIDE

2 YEAR ORICOM AUSTRALIAN WARRANTY INSTOCK NOW

An essential part of your safety kit the MX500 is a high performance radio, built tough to withstand the harshest marine environments. It is waterproof to IP67† if dropped overboard. It will not only float, but the radio will flash ensuring easy retrieval.

KEY FEATURES

• IP67 waterproof† (1 meter depth

for 30 minutes)

• Float and flash

• Vibration water draining function

• Dual/tri-watch

• 5/1 watt switchable

• Large backlit display

• Programmable and priority scan

• Keypad lock

• Battery indicator

• Operating time up to 8hrs

• All international, US and Canadian

Marine VHF channel frequencies

• 2 Year warranty excludes battery*

TECHNICAL SPECIFICATION

GENERAL

Frequency range TX:：156.000-161.450MHz

RX:：156.000-163.425MHz

Type of emissions: 16K0G3E (FM)

Power supply voltage: 3.7V DC nominal

Battery pack: 1500mAh Li-ion (DC 3.7V)

Operating time up to 8hrs

Duty cycle; 5% transmit,

5% receive & 90% standby

Frequency stability: ±10 PPM

Rx Internal SP: < 300mA (Max. audio)

Operating temperature range: (-15 °C ~ +55 °C )

Antenna impedance: 50Ω

Dimensions (without antenna):65mm (w) × 140mm (h) × 41mm (d)

Weight: 247g (With Belt Clip and Antenna)

TRANSMITTER

Output power: 5W/1W switchable power

Max. freq. deviation: ±5.0kHz

Adjacent channel power: ≥70dB

Residual modulation: ≥40dB

RECEIVER

Sensitivity: ≤0.22 µ V

Squelch sensitivity: ≤0.22 µ V

Adjacent channel selectivity: ≥70dB

Spurious response: ≥70dB

Intermodulation: ≥68dB

Audio output power: ≥0.6W (at 10% distortion)

Hum and noise: ≥40dB

†AC Adaptor is not waterproof
