ORICOM TPMS10-4E EXTERNAL TYRE PRESSURE MONITORING+APP FUNCTION

ORICOM TPMS10-4E TPMS104E REAL TIME EXTERNAL TYRE PRESSURE MONITORING SYSTEM+ APP FUNCTIONALITY MODEL

Replaces the tps10-4e

FREE SHIPPING AUSTRALIA WIDE

1 YEAR WARRANTY

Keep your tyres safe and your journeys worry-free with this advanced Tyre Pressure Monitoring System, The compact, solar-powered LCD display provides real-time pressure and temperature data, easily set up via a free app, and allows you to switch between Normal and Offroad driving modes to maintain optimal tyre performance. With wireless sensor transmission, adjustable threshold alerts, auto-brightness, visual and audio alarms, high and low pressure warnings, sensor failure notifications, intelligent power-saving mode, and an optional micro USB input, this system delivers comprehensive tyre monitoring for enhanced safety. Long-lasting display battery life and a 12-month warranty complete a package designed to give you confidence on every road and terrain.

Key Features:

• Compatible with up to 10 tyre sensors ( This kit Comes with 4 sensors)

• Easy setup with the free app

• Switch between Offroad and Normal modes to

save tyre pressure settings

• Compact solar powered display unit

• Long lasting display unit battery life

• Wireless transmission between sensor

and display unit

• Adjustable threshold value

• Auto brightness on display

• Monitors pressure and temperature

• Visual and audio alarm

• Optional micro USB input

• Intelligent sleeping mode for power saving

• High/ low pressure warning

• Sensor failure warning

• 12 Month warranty

Technical Specifications:

Sensor:

Operating frequency: 433.92MHz ± 0.05MHz

Operating voltage: 2.3 ~ 3.3V

Operating current: ≤1 2mA

Static current: ≤0.5uA

Operating temperature: -20˚C ~ +80˚C

Storage temperature: -40˚C ~ +80˚C

Battery model: CR1632

Display:

Operating frequency: 433.92MHz ±0.05MHz, 2.4GHz BLE

Operating current: ≤32mA

Static current: ≤45μA

Operating voltage: 2.6 ~ 3.6V

Operating temperature: -20˚C ~ +70˚C

Storage temperature: -40˚C ~ +95˚C

Built-in battery capacity: 500mAh

Charging temperature: -10˚C ~ 65˚C

Solar charging current: ≥15mA (at 5500LX 25˚C)

USB Charging current: ≤70mA

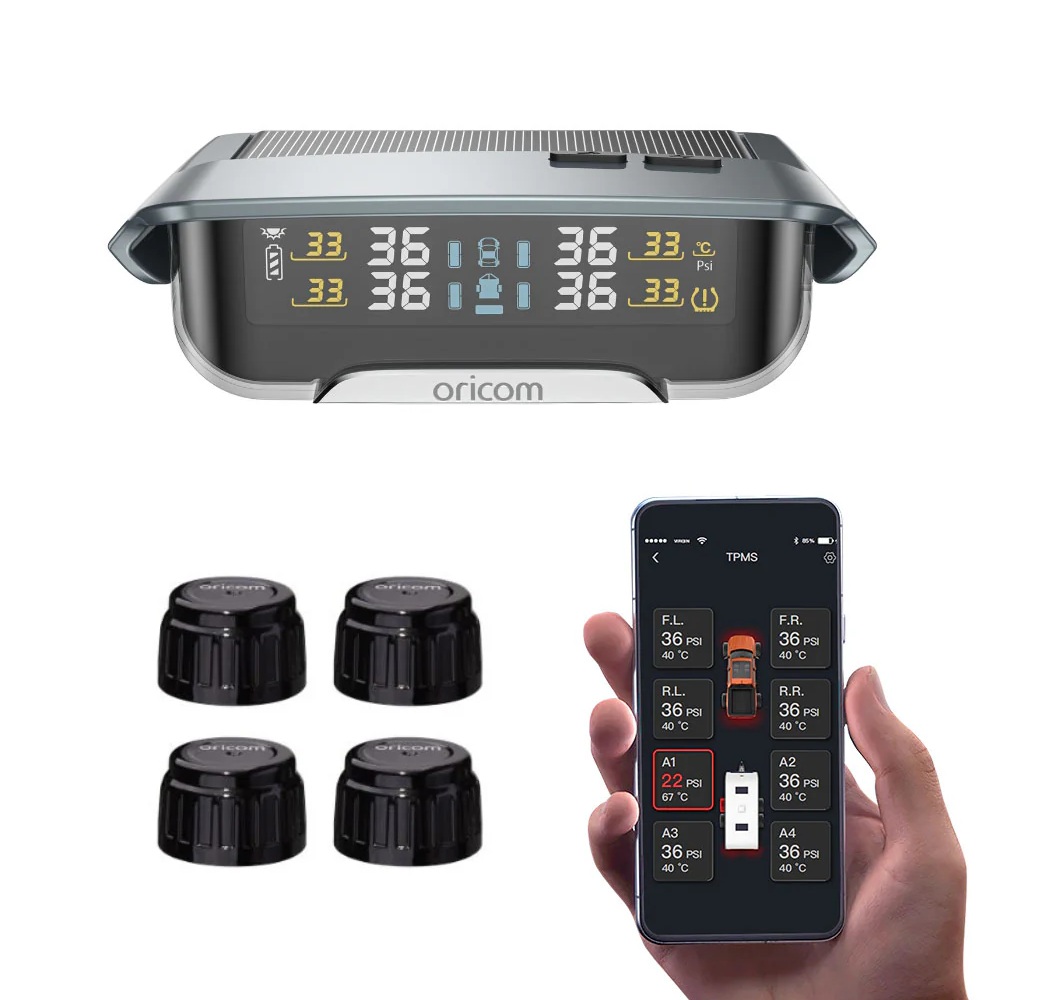

Note: Phone in the photo does not come with the product. It is for Illustration Purposes only
