ORICOM UHF DTX4300 80CH 5W RADIO DUSTPROOF COMPACT SPLASH RESIST

ORICOM UHF DTX4300 80CH 5W RADIO DUSTPROOF COMPACT SPLASH RESISTANT

FREE POSTAGE AUSTRALIA WIDE

5 YEAR ORICOM AUSTRALIAN WARRANTY

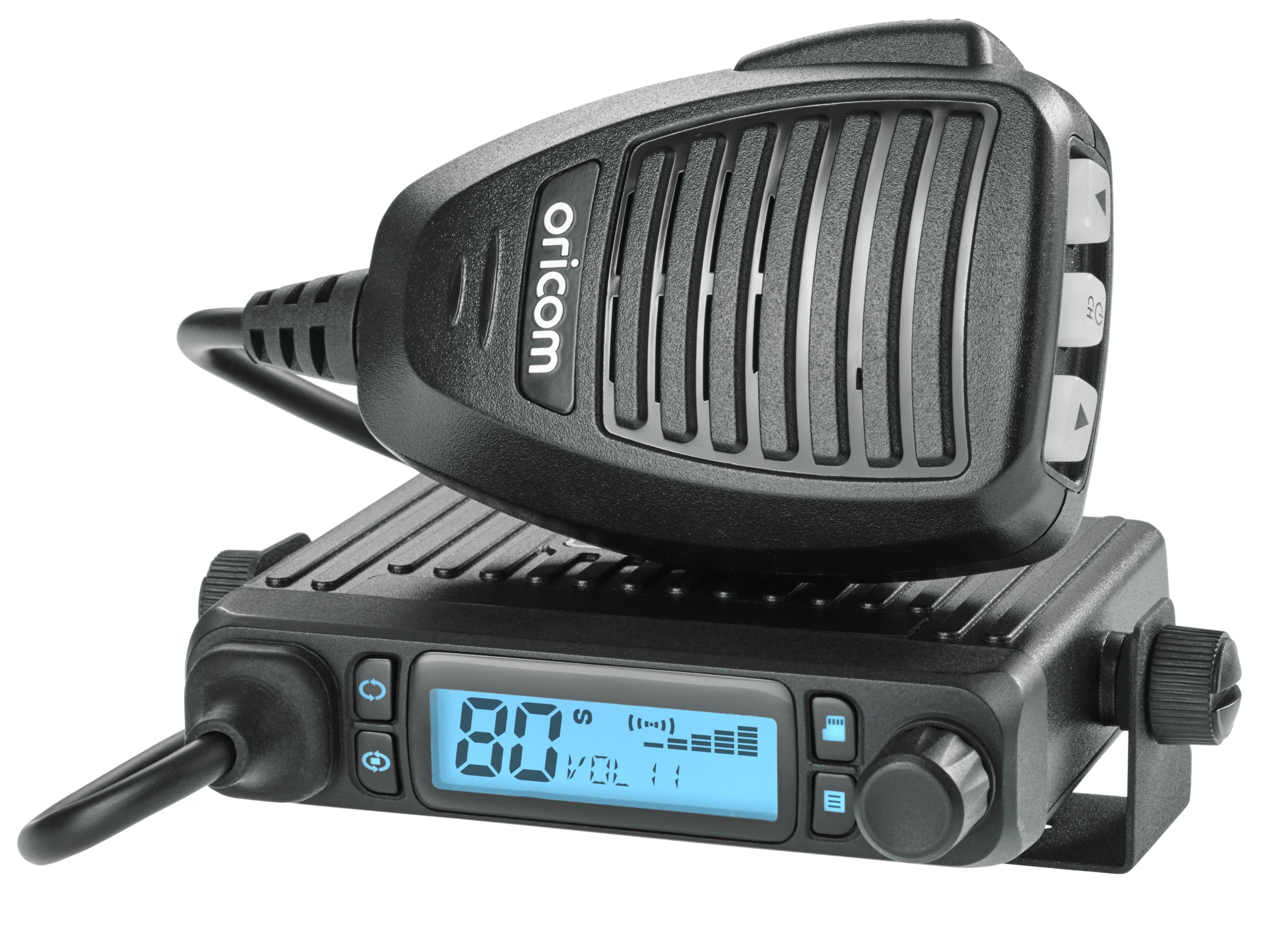

Oricom's DTX4300 ultra compact micro UHF CB is one of the smallest radios on the Australian market.

Ultra compact micro size

96 colour LCD backlit display

Flip LCD function

Over voltage alert function

Heavy duty microphone

3 memory groups

Smart fast scanning (priority/

group memory/ group tone scan)

Back light brightness (4 pre-set levels plus auto)

Rotary volume/channel and squelch control

Duplex

38 CTCSS & DCS codes

Diecast metal chassis

Auto power off (off/1h/2h/4h)

3.5mm external jack (for optional external speaker)

Designed and engineered in Korea

Requires antenna (not supplied)

DTX4300 TECHNICAL SPECIFICATION

GENERAL

Compliance AS/NZS 4365:2011

Frequency Range TX/RX 476.425 - 477.4125 MHz

Number of TX/RX Channels 80 UHF CB Channels (75 voice)

Channel Spacing TX/RX 12.5KHz

Operating modes Simplex, Repeater TX offset

(+750KHz)

Scanning Speed 50 msec per channel

Antenna Impedance 50 Ohms

Operating Volts nominal 13.8VDC to 28VDC

Operating Volts Range 10 to 30VDC

Over Voltage Protection Diode and Voltage

regulator system

Over Current Protection 2 AMP fuse

Reverse Polarity Protection Shunt diode

Frequency stability +/- 5 ppm

TRANSMITTER

RF Output Power 5 watts max

Modulation F3E(FM)

Maximum deviation 2.5KHz

Spurious Emissions < -30dBm

TX Audio pre-emphasis +6dB/Octave from 300Hz

to 3KHz

Current consumption 1.7 AMP with 50 ohm

during TX antenna termination
