The Axis 5" LED Monitor & Reverse Camera Kit JS5001+C20 is currently out of stock

Brand: Axis

`- 170° (Diagonal), 110° (Horizontal) viewing angle
- Monitor LCD Size: 125mm (5-Inch) Diagonal
- Built-in speaker in monitor
- Mountable on license plate or bumper

Axis endevours to provide a smarter & safer world by creating solutions to improve security & design, while finding new ways of doing business. With many years of experience working with everything from network video & audio solutions to analytics & access control, Axis continues to try to push the line and offer the very best to those who seek it.

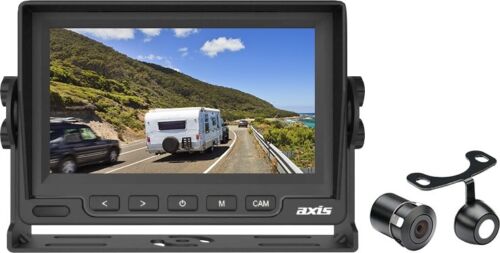

The Axis 5" LED Monitor & Reverse Camera Kit JS5001+C20 is the ultimate safety device for reversing, parking and in-traffic. Perfect for your car, caravan, truck or 4WD, this reverse camera kit consists of a heavy-duty 12/24V monitor and camera system with wide angle viewing (170 degrees diagonal, 110 degrees horizontal) for ultra-high visibility. The camera comes with dual mounting heads for license plate, in-bumper or surface insert mounting and can be set to display custom height and width-adjustable parking guidelines. Back out with confidence with the Axis 5" LED Monitor & Reverse Camera Kit JS5001+C20.

Monitor (JS5001)
– TFT Panel: New Grade A LCD, LED Backlight
– LCD Size: 125mm (5-Inch) Diagonal
– Display Format: 16:9
– Resolution: 800 x 480
– Brightness: < 450 CD/M2
– Viewing Angles: 90 Deg. Left/Right/Up/Down
– Video System: Auto PAL/NTSC Select
– Video Connections: 2 x 4-Pin (Female)
– Reverse Trigger: Assignable to Cam 1 or 2 (via Menu)
– Camera View: Input Selectable (CAM Button), Input Override in Reverse Mode
– Monitor View: Normal/Mirror Image Select
– Guidelines: Selectable
– Audio: On Board Speaker
– Main Menu: Brightness/Contrast/Colour/Volume/Reset/Slideshow/Language/Reverse Priority & Delay
– Casing Material: 100°C Heat/Flame Proof (UL94V-0) ABS Material
– Power Input: 10-32V DC (Negative Ground)
– Dimensions: 136W x 102H x 25D mm (excluding bracket)
– Included: Stand Mount, U-Shape Mount, Remote Control, Power Cable Assembly, Sunshade

Camera (C20)
– Imaging Device: 1/4” Full Colour CMOS
– Imaging Sensor: PC7070
– Effective Pixels: 704 x 576
– Lens: Full Glass
– Viewing Angle: 170° (Diagonal), 110° (Horizontal)
– Video Format: PAL/NTSC (Selectable)
– Parking Guidelines: Yes (Selectable), Type (Adjustable), Height & Width (Adjustable)
– One Button Control: Image Orientation Select (Mirror/Normal), Video Mode Select (PAL/NTSC), Guideline Type Adjust, Guideline Height Adjust, Guideline Width Adjust
– Image Orientation: Mirror, Normal, Upside-Down Mirror, Upside-Down Normal (Selectable)
– Minimum Illumination: 0.3 Lux
– Water/Dust Protection: IP67
– Power Input: 12/24V DC
– Mounting: Number Plate or In-Bumper
– Connection: RCA
– Dimensions: 16.5mm x 23mm (D)
– Included: Dual Mounting Heads (Butterfly & Bumper Fit), Installation Hardware, Metal Hole Saw for Bumper Fit Installation, 6m Camera to Monitor Lead (RCA Male) with Power Wire for Reverse Triggering, RCA to 4-Pin Adaptor
