The AXIS JS7040 7" REVERSING MONITOR+CC08 CAMERA 12/24v is currently out of stock

Check out Parking Reversing Sensor Kits category for other Great deals.

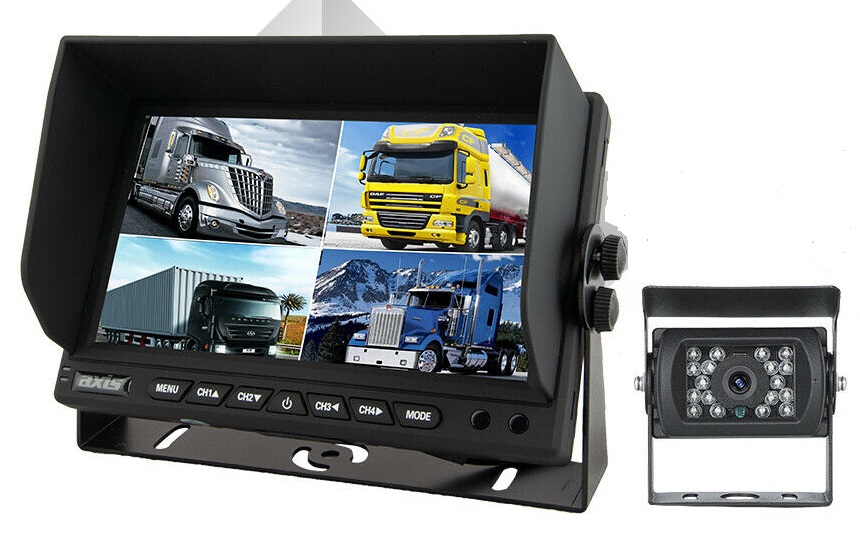

XIS JS7040 7” HEAVY DUTY REVERSEING KIT LED MONITOR + CC08 COMPACT CAMERA - 12/24V



MONITOR - JS7040

  • TFT Panel: New Grade A LCD

  • LCD Size: 178mm (7-Inch) Diagonal
  • Display Format: 16:9
  • Resolution: 800 x 480
  • Brightness: < 500 CD/M2
  • Viewing Angles: 70° Left/Right/Up/Down
  • Video System: Auto PAL/NTSC Select
  • Video Connect: 4 x 4-Pin (Female)
  • Compatibility: Suits all Axis standard definition cameras
  • Reverse Trigger: 4
  • Monitor View: Normal/Mirror Image Select
  • Buttons: Illuminated
  • Guidelines: Selectable On/Off (Camera 2 Only)
  • Audio: On Board Speaker
  • Menu: OSD
  • Main Menu: Brightness/Contrast/Colour/Volume/Guidelines (On/Off)/Reset/Language
  • Operating Temp: -20°C to +70°C
  • Power Input: 10-32V DC (Negative Ground)
  • Dimensions: 180W x 121H x 26D mm (excluding bracket)
  • Finish: Matt Black Rubber, Matt Metal
Includes:
  • 1 x JS7040
  • 1 x U-Shape Mount
  • 1 x Remote Control
  • 1 x Power Cable Assembly
  • 1 x Sunshade

CAMERA - 1 X CC08



  • Image Sensor: 1/3” Sony CCD
  • Auto Lens: f2.9mm
  • Electronic Shutter: No
  • Diagonal Viewing Angle: 120°
  • Horizontal Viewing Angle: 90°
  • Signal System: PAL
  • Resolution: 700 TV Lines
  • Sync System: Internal
  • Orientation: Mirror Image
  • Night Vision: Yes, 18 LED
  • Illumination: 0 Lux with IR on
  • Ingress Protection: IP69K
  • Microphone: Yes
  • Operating Temperature: -20°C ~ 70°C
  • Dimensions: 70W x 45H x 60D mm (Excl Bracket)
  • Connection: Terminated 4-Pin Male
  • Power Supply: 12V DC (From Monitor)
  • Extension Cable: 15m 4 Pin Male to 4 Pin Female
Includes:
  • 1 x CC08
  • 1 x 15m Extension Cable
  • 1 x Mounting Bracket
  •
