GATOR GT700SD GT SERIES HEAVY DUTY 7" MONITOR AND CAMERA KIT

Item#: 4001

$262.77    AU$238.88


Free Shipping Australia Wide

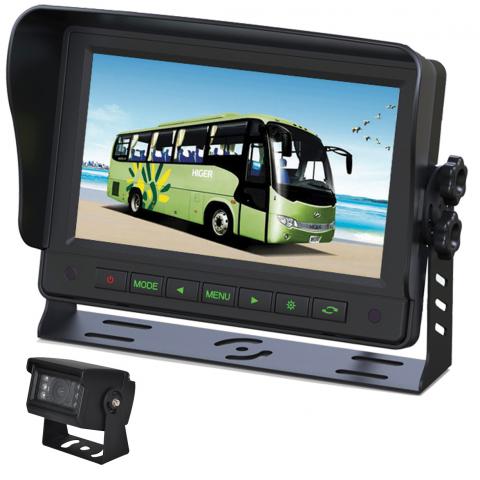

GATOR GT700SD GT SERIES HEAVY DUTY  7" MONITOR AND CAMERA KIT

FREE SHIPPING AUSTRALIA WIDE

1 YEAR AUSTRALIAN WARRANTY


Whether it be a Heavy Truck, Mining Loader, Industrial or Construction vehicle, these can be some of the most difficult vehicles to operate safely. The Gator GT range of enhanced vision systems gives the driver vastly superior, all round vehicle awareness. Making these vehicles safer not only for the driver but also the people around them. With a much greater awareness of what surrounds the vehicle, the driver is more productive and is less likely to cause damage to the vehicle and/or objects around them. The GT series brings to market the very latest in heavy duty display panels, digital video encoding technology and installation versatility.

Important AHD info:

AHD cameras will NOT display on non-AHD monitors.
Non-AHD cameras will NOT work with AHD monitors.



FEATURES

  • Monitor:
  • 7" Display
  • Heavy Duty Design
  • 3x PROLINK2 Camera Inputs
  • 12V and 24V Compatible
  • High/Low Voltage Cutoff
  • Built-in Short Circuit Protection
  • Optional Windscreen Suction Mount Available
  • 3 Year WarrantY

  • Camera:

  • Heavy Duty Design

  • 10 IR LED's for Night Vision
  • Prolink II Connector
  • 3-Year Warranty



SPECIFICATIONS

  • Monitor:

  • Display Size: 7" (Diagonal)

  • Mounting Options: Adjustable Metal Bracket and Windscreen Suction Mount (GTSM1 Sold Separately)
  • AHD: No
  • AHD Resolution: N/A
  • Display Resolution: 800(H) x 480(V)
  • Colour System: RGB
  • Display Brightness: 350CD
  • Picture Aspect Ratio: 16:9
  • Input Voltage: 12V/24V
  • Camera Output Voltage: 12V
  • Number of Video Inputs: 3
  • Number of Video Triggers: 2
  • Split Screen Display Options: None (Displays Single Camera)
  • Video Input Connection Type: Prolink II
  • PAL or NTSC: Both (Auto Switching)
  • Picture Adjustment:
    • Brightness: Yes
    • Contrast: Yes
    • Saturation: Yes
  • Reverse (Mirror) Image: Yes (Selectable)
  • Dimensions (Monitor Only):
    129mm(H) x 195mm(W) x 30mm(L)
  • Dimensions (Monitor & Bracket):
    156mm(H) x 215mm(W) x 73mm(L) - Measurement with Bracket In Vertical Position, with Sunshade Fitted
  • Other Features:

  • Camera:

  • Mount Type: Surface Mount U-Shaped Bracket

  • Reverse or Rear View: Rear View
  • Lens Angle: 120 Degrees
  • CMOS or CCD: CMOS
  • AHD: No
  • AHD Resolution: N/A
  • Parking Gridlines: No
  • PAL or NTSC: PAL
  • IP Rating: IP68
  • Voltage: 12V
  • Minimum Illumination: 0 LUX
  • Number Of LED'S: 10
  • LED Type: Infrared
  • Plug Type Camera End: Prolink II
  • Plug Type Monitor End: N/A
  • Length of Video Cable: 400mm
  • Reverse Trigger on Video Cable: N/A
  • Dimensions (Camera Only):
    42mm(H) x 52mm(W) x 55mm(L)
  • Dimensions (Camera & Housing):
    60mm(H) x 63mm(W) x 55mm(L)


    Other Features:

  • Kit Notes: Camera inputs and triggers are located at the far-end of the 6M main harness. Power input is located at the monitor end of the 6m main harness.

  • Kit Inclusions: 7" Monitor, Adjustable Metal Bracket for Monitor, 4x Thumbscrews, Removable Sunshade, IR Remote Control with CR2025 Battery, GT14SD - GT Series Smaller Footprint Heavy Duty Camera, 6M(L) Input Harness, User Manual

Add to Cart:

  • Model: GT700SD
