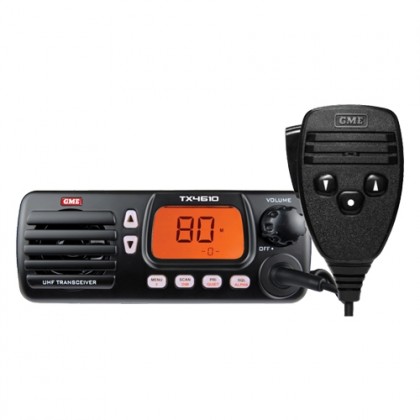

GME TX4610 5W IP67 WATERPROOF UHF VEHICLE QUAD BIKE RADIO

Item#: 4268

$559.77    AU$508.88


Free Shipping Australia Wide


GME TX4610 5 WATT IP67 WATERPROOF UHF RADIO

FREE SHIPPING AUSTRALIA WIDE

5 YEAR AUSTRALIAN WARRANTY



The TX4610 is ideal for the most rugged environments and is especially suited for use on ATVs, quad bikes and tractors. The TX4610 packs a lot of features into a compact chassis including a large, tri-colour backlit display, selcall and programmable channels.

The all-new IP67 microphone includes channel up/ down keys and a priority channel button making these functions a simple one-handed operation within a modern, waterproof and dustproof chassis. The TX4610 can be installed using either the supplied metal mounting bracket, or  flush mounted with the optional MK008B flush mount kit to suit the user’s individual installation requirements.

The TX4610 is proudly designed and made in Australia, ensuring the rugged, high-quality design will offer years of reliable operation in ATV and farming vehicles.




Product Details

  • Compact size
  • Ingress protection to IP67
  • User Selectable Priority Channel
  • User Selectable Open and Group Scan
  • User Adjustable Squelch
  • 5 Digit Selcall with Quiet Mode
  • 50 In-Built CTCSS Codes
  • 10 Selcall Memories
  • Tricolour Backlighting
  • ANI (Automatic Number Identification) and Alpha Labelling for Selcall.
  • 19 Extra User Programmable Receive Channels (403-520 MHz).
  • Australian Made
  • 5 Year Warranty


In the Box:

  • TX4610 UHF CB Radio
  • IP67 Microphone (MC610)
  • Metal Mounting Bracket
  • Microphone Clip
  • 12V DC Lead
  • Screw Pack


Product Specifications

GENERAL

Compliant Specification
Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX
476.425-477.4125 MHz
Number of Channels
80 UHF CB + 19 Receive only
Channel Spacing
12.5 kHz only
Operation Mode
Simplex Ch1 - 80 Semi Duplex Ch 1 - 8, 41 - 48
Scanning Speed
20 channels per second
Antenna Impedance
50 Ohms nominal
Nominal Battery Voltage
13.8 volts DC
Operating Voltage Range
10 - 15 volts DC
Overvoltage Protection
30 Volts DC max. At 18 Volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Overcurrent Protection
In-line 3A Fuse
Frequency stability
± 2.5 PPM
Modulation
FM


TRANSMITTER

RF Output
5.0 watts max
Spurious Emission
< - 26 dBm
Maximum Deviation
< ± 2.5 kHz at + 20 dB
Transmit Frequency Response
+ 6 dB per octave 300 Hz to 3 kHz + 1 - 3 dB
Current Consumption
< 260 mA muted 600 mA @ max. A.F Output



RECEIVER

Intermediate Frequencies
1st - 21.4 MHz 2nd - 450 kHz
Sensitivity
- 123 dBm for 12 dB SINAD unweighted
Selectivity
- 6 dB at ± 3.5 kHz, - 60 dB at ± 12.5 kHz
Intermodulation Immunity
73 dB
Blocking Immunity
100 dB
Spurious Response Immunity
70 dB
Audio signal to noise: 12.5Khz
> 45 dB
Current consumption
1.7 amps with 50 Ohm termination
Conducted Spurious Emission
< - 57 dBm



MECHANICAL SPECIFICATIONS

Dimensions
65 (H) x 165 (L) x 56 (D) mm
Weight
472 grams
Storage temperature
-10°C to +60°C
Add to Cart:

  • Model: TX4610
  • Manufactured by: GME
