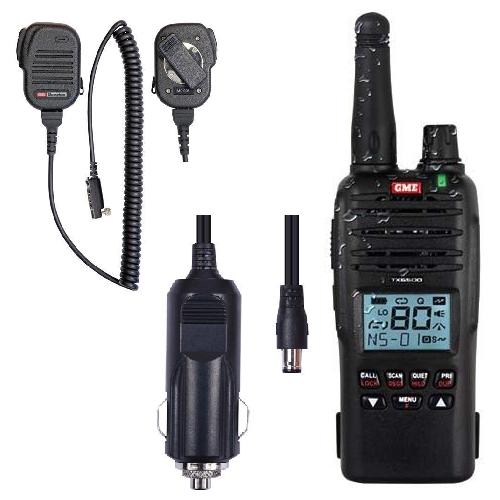

GME TX6500S UHF RADIO + MC008B MICROPHONE + LE012 CIG CHARGER RADIO PACK
FREE SHIPPING AUSTRALIA WIDE
GME TX6500S Water Dust Proof 5w IP67 HANDHELD 80CH UHF RADIO
FREE SHIPPING AUSTRALIA WIDE
5 WATT 80 CHANNEL HANDHELD RADIO
3 YEAR WARRANTY
The TX6500S is the only UHF CB handheld radio designed and built exclusively in Australia. With an IP67* water and dust proof rating and a battery life of 20 hours for consistent reliable communications under all conditions. The TX6500S is bred GMEs digital DNA and introduces ScanSuite™ a unique GME software innovation that allows continuous uninterrupted conversation even when on congested channels. Other key features include Digital Signal Processing, Advanced Signal Management and Dynamic Volume Control. The oversized backlit LCD, coupled with the 5/1 watt switchable output power and including two antennas in the box makes this a formidable radio ensuring years of reliable communication.
Features
-
IP67 rating - Dust and water proof up to 1 metre for 30 minutes
-
SelCall, CTCSS, DCS and Voice Inversion Scrambler for those users looking for greater privacy and less interruption.
-
Intelligent Battery Management and a 2000mAh lithium ion polymer battery pack - for up to 15 hours operating time
-
Oversized high contrast backlit LCD for clear day night use
-
ScanSuite - Including TurboScan - up to 50 channels per second, Network Scan - delivering uninterrupted conversation and AutoSkip - remove nuisance channels from scan memory
-
Switchable 5/1 watt RF output power with a 2000mAh Li-Ion Polymer battery providing up to 15 hours operating time (high power) with the use of GMEs unique Intelligent Battery Management.
-
Digital Signal Processing - Incorporating Advanced Signal Management and Dynamic Volume Control
-
Two antennas for any application - Compact high performance antenna for short range communications and a flexible ¼ wave for greater range when needed
-
Voice Inversion Scrambler - for greater privacy and less interruption
-
Genuine GME accessories available.
-
95 extra programmable receive channels with alpha labelling – so you can keep up to date on localised weather and emergency information via emergency frequencies.
Specifications
GENERAL |
Compliance |
Compliant with AS/NZS 4365 for radio communications equipment in the UHF citizen band and personal radio service. |
Frequency Range |
476.425 MHz – 477.4125 MHz |
Number of Channels |
80 (plus 95 receive only) |
Tuneable Frequency Range (receive only) |
403 MHz – 520 MHz |
Channel Spacing |
12.5 kHz |
Operating Mode |
Simplex or half duplex |
Scanning Speed |
40 ms per channel (25 channels per second) |
Antenna Impedance |
50 Ohms nominal |
Battery Voltage |
7.4 volts DC nominal |
Operating Voltage Range |
6 – 9 volts DC |
Low Battery Alarm |
6.9 volts DC |
Reverse Voltage Protection |
Shunt Diode |
Operating Temperature |
-20° C to +60° C |
Frequency Stability |
± 2.5 PPM |
Modulation |
FM |
TRANSMITTER |
RF Output |
High: 5 watts Low: 1 watt |
Conducted Spurious Emission |
< -75 dBm |
Maximum Deviation |
< ± 2.5 kHz at + 20 dB limiting |
Transmit Frequency Response |
+6 dB per octave 300 Hz to 3 kHz |
Current Consumption (max) |
2.0 amps typical |
RECEIVER |
Sensitivity (450 – 520 MHz) |
-121 dBm for 12 dB SINAD |
Intermediate Frequencies |
1st: 38.85 MHz 2nd: 450 kHz |
Adjacent Channel Selectivity |
>65 dB |
Intermodulation Immunity |
>65 dB |
Blocking Immunity |
>90 dB |
Spurious Response Immunity |
>70 dB |
Image Rejection |
>60 dB |
Audio Output Power |
1 watt at <10% distortion |
Audio Signal to Noise |
> 40 dB |
Receiver Frequency Response |
6 dB per octave de-emphasis 300 Hz to 3 kHz + 1 -3 dB |
Squelch |
SQL-1: -122 dBm typical SQL-9: -110 dBm typical |
Current Consumption |
40 mA sleep mode 80 mA muted 340 mA full volume |
MECHANICAL |
Dimensions |
60 mm (W) x 40 mm (D) x 130 mm (H) (not including antenna) |
Weight |
340 grams |
Antenna |
TNC female |
Speaker/Microphone/Programming |
8 pin connector |
Battery Rapid Charging |
4 plated terminals with temperature sensor |
NOTE: All values are typical unless otherwise stated and are subject to change without notice |
Supplied with:
-
TX6500S radio
-
2000 mAh Li-Ion battery pack
-
PS001 power supply
-
BCD013 rapid desktop charger
-
Belt clip
-
Instruction manual
GME MC008B HEAVY DUTY SPAEKER MIC FOR GME TX6500S H/H RADIO
FREE TRACKABLE SHIPPING AUSTRALIA WIDE
1 YEAR WARRANTY
HEAVY DUTY SPEAKER MICROPHONE
THIS HEAVY DUTY SPEAKER MICROPHONE SUITS THE GME TX6500S HAND HELD RADIO
GME LE012 VEHICLE CIGARETTE CHARGER FOR TX6500S
FREE SHIPPING AUSTRALIA WIDE
INVEHICLE CHARGER FOR THE GME TX6500S HANDHELD RADIOS PLUGS INTO THE CRADLE
12V DC Vehicle lighter power lead suits BCD003, BCD013 and BCD001
-
12V DC vehicle lighter adapter style lead
-
Suitable for desktop chargers BCD003 and BCD001
