  The XTAR MC6 MICRO USB 6 SLOT 18650 CHARGER KIT LITHIUM 6 CELL is currently out of stockCheck out Universal Battery Chargers category for other Great deals.
Description XTAR MC6 USB Input Automatic Six Channel 1-6 Cell Lithium Ion Battery Charger Add To Cart
Brand
Width 148mm
Height 34mm
Length/Breadth/Depth 111mm
Weight 200g
Comments

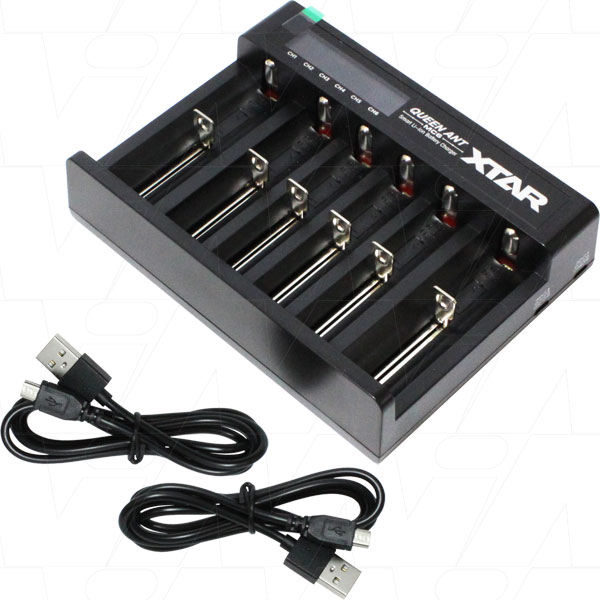

The XTAR MC6 is a six channel (1-6 cells) fully automatic lithium ion battery charger. Powered by the included 5VDC input USB cable the charger includes the following features:
Six cell charger for charging 3.6V/3.7V lithium ion cell in sizes
Channels 2-5: 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18500, 18650, 18700, 26650, 25500, 26650,
Channels 1 and 6: Flat 32650.
Powered via USB input (includes 2 x USB cables)
USB input 1 provides power to channels 1 and 6
USB input 2 provides power to channels 2-5
Auto selects Charging Current:
CH1 and CH6 = 1.0A or 0.5A (low power)
CH2 - CH 5 = 0.5A or 0.2A (low power)
MC6 automatically reduces charging current to low power if power supply is insufficient
Connect USB input 1 and USB input 2 to charge up 6 cells simultaneously thanks to independent charging channels
Sliding contacts for firm contact with battery during charging
LED charging status and charging current indicators per channel
0V discharged cell wake-up function
IC Temperature monitoring and heat dissipation design for 15°C max. rise.
Cut-off voltage 4.2V (±0.05V) cut-off current ≤120mA.
Overheat protection, reverse polarity and short circuit protection.
MC6 package includes:
MC6 charger
2 x USB cable
Manual and warranty card |
